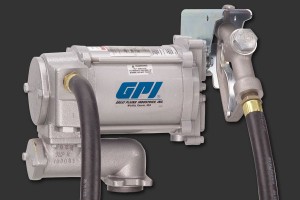

This pump is built with a 1/3 horsepower motor and designed for high performance. The M-3120 is the pump of choice for heavy equipment applications. 115-volt AC Heavy Duty Vane Pump for fuel with manual leaded nozzle.
Specifications
Model
|
|
M-3120-ML |
Design Type
|
|
Vane |
Voltage
|
|
115 Volts DC |
Mechanical Connection
|
|
1 in. Inlet
¾ in. Outlet
¾ in. Bushing |
Reads
|
|
Gallons
Litres |
Flowrate
|
|
Up to 20 GPM
Up to 75 LPM |
Duty Cycle
|
|
30 minutes on, 30 minutes off |
Hose
|
|
12 ft3.7 m¾ in. diameter |
Nozzle
|
|
Manual |
Power Cord
|
|
Sold Seperately |
Motor Protection
|
|
Internal temperature-limiting device |
Suction Pipe
|
|
None |
Motor Protection
|
|
18 ft / 5.5 m power cord, ¾ in. x 12 ft / 3.7 m hose, adjustable suction pipe, manual nozzle |
To Use With
|
|
Diesel fuel, Up to 20% biodiesel blends such as B20, Gasoline, Up to 15% alcohol blends such as E15, Kerosene |
Unique Features
|
|
External switch coverplate allows for easy access and keeps the UL rating intact |
Approvals
|
|
U.L. Listed to U.S. and Canadian Standards |
Warranty
|
|
2 Years |
|
|
